Installing & configuring Grafana

Installing dependencies - Pushgateway

This dependency is specific to the Nethermind execution layer client to enable the Grafana monitoring dashboard to work properly.

Download the latest version and the checksums list.

curl -LO https://github.com/prometheus/pushgateway/releases/download/v1.7.0/pushgateway-1.7.0.linux-amd64.tar.gz
curl -LO https://github.com/prometheus/pushgateway/releases/download/v1.7.0/sha256sums.txt

Print the checksums list and look for the corresponding sha256 checksum according to your downloaded version - e.g.

cat sha256sums.txt

Copy the checksum string and replace it in the first string component below to verify the checksum of your downloaded zip file. For your convenience, the actual string has been pre-filled.

echo "6fedc802c07f4d83a70d45b73bae9d3ab026f827ecf99c026fc896335e5211b7  pushgateway-1.7.0.linux-amd64.tar.gz" | sha256sum --check

Expected output: Verify output of the checksum verification

pushgateway-1.7.0.linux-amd64.tar.gz: OK

If checksum is verified, extract the files and move them into the (/usr/local/bin) directory for neatness and best practice.

tar xvf pushgateway-1.7.0.linux-amd64.tar.gz
cd pushgateway-1.7.0.linux-amd64
sudo cp pushgateway /usr/local/bin

Then, clean up the duplicated copies.

cd
rm -r pushgateway-1.7.0.linux-amd64 pushgateway-1.7.0.linux-amd64.tar.gz

Create an account (pushgateway) without server access for Pushgateway to run as a background service.

sudo useradd --no-create-home --shell /bin/false pushgateway

Create the systemd configuration file to run Pushgateway.

sudo nano /etc/systemd/system/pushgateway.service

Paste the following contents into the configuration file.

[Unit]
Description=Prometheus Pushgateway
After=network.target
Wants=network.target

[Service]
User=pushgateway
Group=pushgateway
Type=simple
Restart=always
RestartSec=5
ExecStart=/usr/local/bin/pushgateway

[Install]
WantedBy=default.target

Once you're done, save with Ctrl+O and Enter, then exit with Ctrl+X.

Start the Pushgateway service.

sudo systemctl daemon-reload
sudo systemctl start pushgateway
sudo systemctl enable pushgateway
sudo systemctl status pushgateway

Expected output: The output should say Pushgateway is “active (running)”. Press CTRL-C to exit and Pushgateway will continue to run.

Monitor for causes of error messages otherwise.

sudo journalctl -fu pushgateway -o cat | ccze -A

Download and install Grafana

Install Grafana using the APT package manager - Download the Grafana GPG key, add Grafana to the APT sources, refresh the apt cache, and check that Grafana has been added to the APT repository.

wget -q -O - https://packages.grafana.com/gpg.key | sudo apt-key add -
sudo add-apt-repository "deb https://packages.grafana.com/oss/deb stable main"
sudo apt update
apt-cache policy grafana

Expected output: Ensure the top-most version matches with latest version here - https://grafana.com/grafana/download

grafana:
  Installed: (none)
  Candidate: 10.0.3
  Version table:
     10.0.3 500
        500 <https://packages.grafana.com/oss/deb> stable/main amd64 Packages
     10.0.2 500
        500 <https://packages.grafana.com/oss/deb> stable/main amd64 Packages
     10.0.1 500
        500 <https://packages.grafana.com/oss/deb> stable/main amd64 Packages

Run the installation command.

sudo apt install -y grafana

Start the Grafana server.

sudo systemctl start grafana-server
sudo systemctl status grafana-server

The output should say Grafana is “active (running)”. Press CTRL-C to exit and Grafana will continue to run.

Use the following command to check the logs for any warnings or errors:

sudo journalctl -fu grafana-server -o cat | ccze -A

Press CTRL-C to exit.

If the Grafana service is running smoothly, we can now enable it to fire up automatically when rebooting the system.

sudo systemctl enable grafana-server

Configure the Grafana Dashboard

1. go to http://<yourserverip>:3000/

2. Enter admin for both username and password

3. Select Data Sources and click on Add data source , then choose Prometheus and enter http://localhost:9090 for the URL

4. Setup dashboards - On the left menu bar, click on Dashboards >> Import

   • Execution client dashboard

     • Nethermind: Paste the JSON text from here

     • Besu: Enter the dashboard ID - 10273

     • Geth: Enter the dashboard ID - 13877

   • Consensus client dashboard

     • Teku: Enter the dashboard ID - 16737

       • Nimbus: Paste the JSON text from the options below

         • Nimbus Github

         • Metanull

       • Lodestar: Paste the JSON text from here

       • Lighthouse: Paste the JSON text from here

       • Prysm: Paste the JSON text from here

   • Node Exporter dashboard - Paste the JSON text here

5. Select Prometheus from the "Select a Prometheus data source here" drop down field.

Screenshot samples of Grafana Dashboard

Execution client:

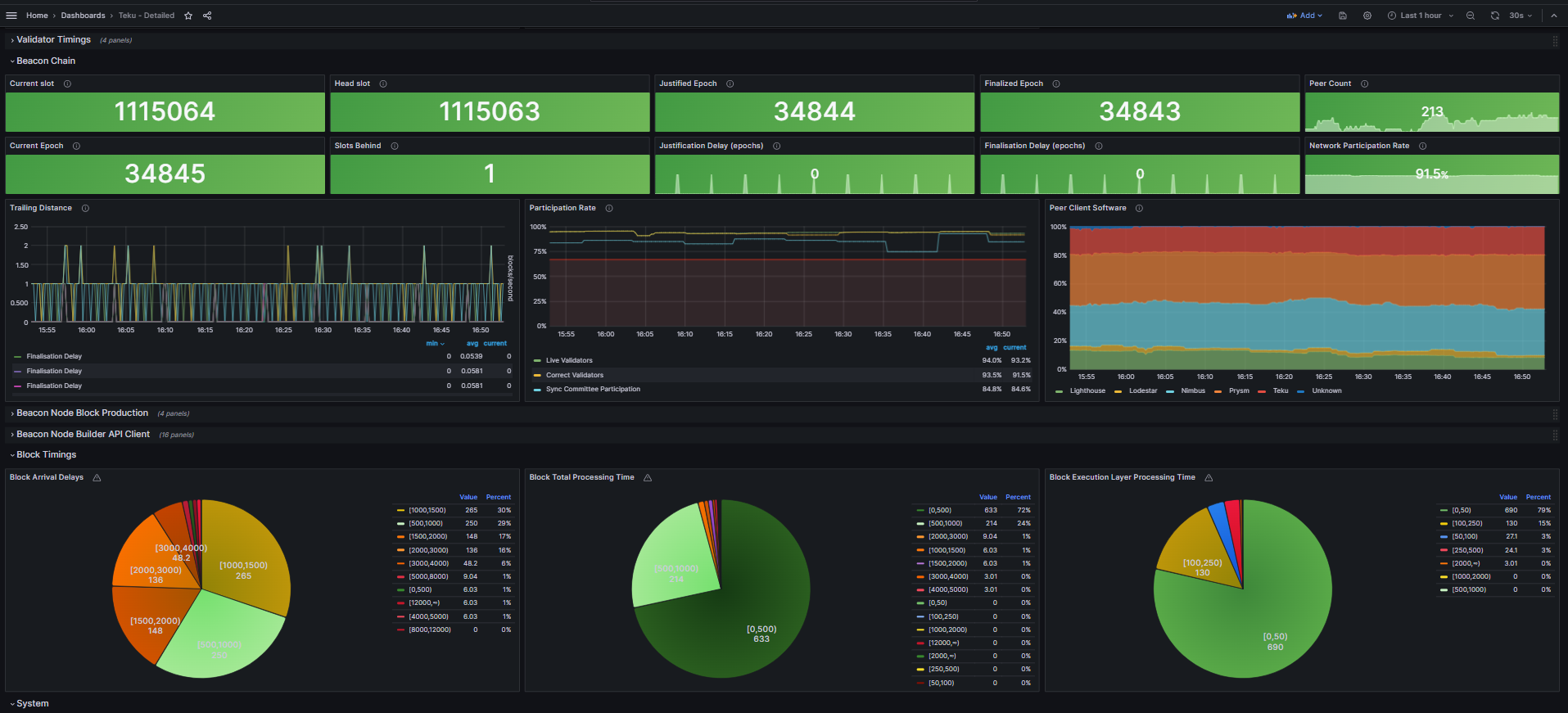

Consensus client:

Node Exporter:
